PVC insulation Tape
Your Professional PVC insulation Tape Supplier
Yiwei company's main products: BOPP tape jumbo roll, BOPP tape, Stationery Tape, Double sided tape, Duct tape, Masking tape, PVC Insulation Tape, PVC warning tape, Butyl tape, other products and materials such as BOPP film, PE Stretch film, Acrylic glue, Acrylic ester etc. Products are widely used in normal packaging like carton packaging and pallet packaging, school and office supplies, architectural decoration, automobile manufacturing and automotive care, electrical and electronic products, paints, furniture manufacturing, waterproof seal and other fields of paint masking, bonding, fixing, protection, conduction and insulation.

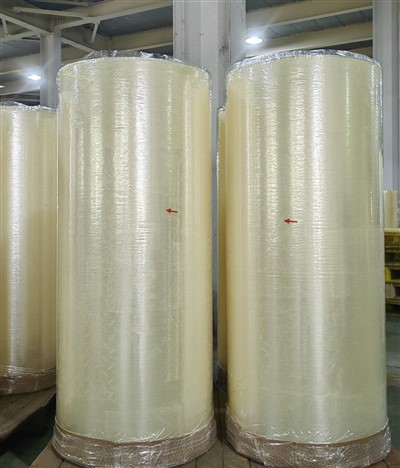

For insulation tape, we can offer you both Jumbo Rolls and small finished rolls. Jumbo roll width is 1250mm, and finished tape width usually is 12mm, 15mm, 19mm.
-
![Custom Printed PVC Electrical Tape]()
Custom Printed PVC Electrical TapeOur Custom Printed PVC Electrical Tape is a versatile and durable solution designed for electrical insulation and protection. Manufactured from high-quality PVC, this tape is ideal for a wide...read more -
![Protect Electrical Wires PVC Electric Insulating Tape]()
Protect Electrical Wires PVC Electric Insulating TapeOur Protect Electrical Wires PVC Electric Insulating Tape stands as a top-tier insulation means of safeguarding electrical wires, household appliance and electronics. Composed of high-grade PVC...read more -
![Electrical Insulating Tape]()
Electrical Insulating TapeOur Electrical Insulating Tape is made from polyvinyl chloride as backing material, and coated with rubber pressure-sensitive adhesive. It features excellent insulation, good viscosity, withstand...read more -
![Plastic Electrical Tape Jumbo Roll]()
Plastic Electrical Tape Jumbo RollOur Plastic Electrical Tape Jumbo Roll is a semi-finished product with the usable width of 1250mm for cutting to smaller widthes you need. This big roll size is suitable for some countries and...read more -
![Black Electrical Insulation Tape]()
Black Electrical Insulation TapeOur Black Electrical Insulation Tape is a PVC film-based tape coated with rubber adhesive. It has wonderful features, such as insulation, flame retartance, cold resistance, voltage resistance,...read more -
![Flame Retardant Insulation Tape]()
Flame Retardant Insulation TapeOur Flame Retardant Insulation Tape is designed to offer the highest level of safety and performance within electrical applications. Constructed from premium-quality PVC, this tape not only...read more -
![PVC Insulation Tape Raw Material]()
PVC Insulation Tape Raw MaterialOur PVC Insulation Tape Raw Material is the semi-product for cutting to smaller sizes as you need. It will greatly save the cost and monitor the quality during the production. Made from...read more -
![Tape for Electrical Insulation]()
Tape for Electrical InsulationOur Tape for Electrical Insulation is expertly produced to offer dependable protection and insulation for electrical wires and components. The raw material is PVC film coated with rubber adhesive...read more -
![Heat Resistant Electrical Insulation Tape]()
Heat Resistant Electrical Insulation TapeOur Heat Resistant Electrical Insulation Tape,based on PVC film coated with rubber adhesive,is specifically designed to provide exceptional performance in high-temperature environments. This tape...read more -
![Non Conductive Electrical Tape]()
Non Conductive Electrical TapeOur Non - Conductive Electrical Tape is specially engineered to offer safe and dependable insulation within electrical applications. Crafted from top-notch PVC film material, this tape is...read more -
![Professional Electrical Tape]()
Professional Electrical TapeOur Professional Electrical Tape is specifically designed for high-performance electrical insulation and protection. Made from premium-grade PVC film, this tape offers superior durability and...read more -
![PVC Electrical Insulation]()
PVC Electrical InsulationOur PVC Electrical Insulation Tape is engineered to provide exceptional electrical insulation and protection for a wide range of applications.read more
Why Choose Us
Customization
We can offer customization on product’s specifications, logo printing, adhesive types, packaging ways and so on, to meet your requirement.
Quality Control
Our company established the systematization quality control system and strict management system, quick to providing customers with high-quality products and best services.
Our Services
Customer satisfaction is our priority. Besides quick production time and good quality, we have a professional system of after-sales service, to help you solve problem if it occurs.
Foreign trade market
Our products are sold well both at home and abroad, and are exported to more than 50 countries and regions such as Southeast Asia, Middle East, Japan, Korea, Europe, Africa, South America and America, still rapidly developing.
PVC Insulation Tape Specifications
|
Product |
PVC insulation tape / Electronic tape |
|
Adhesive Type |
Nature rubber glue |
|
Thickness |
120~200mic, Normally 130mic |
|
Dielectric Strength |
≥ 5 kV/mm |
|
Initial Tack |
≥ 10N/25mm |
|
Hold Power |
≥ 24 hours |
|
Tensile Strength |
≥ 20 N/cm |
|
Elongation |
100%~200% |
|
Type |
Flame Retardant Insulation and Non Flame Retardant Insulation Tape |
|
Paper Core Diameter |
32mm, 38mm |
|
Features |
Chemical resistance, anti-UV, water-proof and moisture-proof. |
Insulation and Protection: vinyl tape can effectively block the electricity, preventing from short circuits or electric leakage; Protecting cables from friction and damaging.
Temperature Tolerance and Weather Tolerance: both can be used in cold and hot situation; with UV-resist, it can be used outdoors and prevent from rain erosion.
High Adhesive and Elasticity: can be stretched and winded, tightly adhere, preventing falling off.
Flame Retardant and Fireproofing: not easy to be fired.
Colour Coding：Various of colors help the worker to distinguish the different cables for improving the working efficiency or the following repairs if need.
Types of PVC Insulation Tapes Available
Standard PVC Electrical Tape
This is the most common type of PVC tape, ideal for general-purpose electrical insulation. It is used for insulating electrical wires, repairing minor cable damage, and bundling cables together. Standard PVC electrical tape typically comes in black but is also available in other colors for color-coding purposes.
High-Voltage PVC Electrical Insulation Tape
For high-voltage applications, using high-voltage PVC insulation tape is essential. This type of tape is specially designed to provide higher dielectric strength, ensuring that it can withstand higher voltages without breaking down.
Flame-Retardant PVC Electrical Tape
Safety is a top priority in any electrical work. Flame-retardant PVC electrical insulation tape is designed to resist ignition and prevent the spread of flames in case of a fire. This type of tape is often used in environments where fire safety is critical.
Cold Weather PVC Electrical Tape
For applications in cold climates, cold weather PVC electrical tape is formulated to remain flexible and adhesive even at low temperatures. It is ideal for outdoor applications, especially in regions with harsh winters.
Applications
Wire and Cable Insulating
PVC insulation tape offers extreme flexibility and excellent adhesion, making it ideal for insulating wires and cables with precision.
Bundling and Reinforcing
Its strong adhesive properties make it perfect for bundling and reinforcing electrical components, ensuring optimal stability and longevity.
Automotive Wiring Harness
Trusted by professionals, our PVC insulation tape is a preferred choice for automotive wiring harness applications, providing reliable insulation and protection.
Electrical Insulation
Suitable for a wide range of electrical installations, our PVCinsulation tape delivers superior insulation performance, ensuring safety and efficiency.
Lead time: 20~25days after deposit received.
Transportation: Express Courier (e.g, DHL/FedEx/Ups. Better for urgent goods <100kg);
By Air (better for 100~500kg);
By Sea (both for FCL &LCL);
By train (usually FCL).
Forwarder agent: We have professional and experienced forwarder agent , who can offer you a suitable shipping line for you and cheap shipping cost. If you have your own agent, just send your agent information to us. We can work together and offer you a satisfying shipping line.
FAQ
As one of the leading PVC insulation tape manufacturers and suppliers in China, we warmly welcome you to buy bulk cheap PVC insulation tape from our factory. All customized products are with high quality and competitive price. Contact us for quotation.
